Vertical Horizontal Wire Flame Test Apparatus of UL 1581


We are professional Vertical Horizontal Wire Flame Test Apparatus manufacturers, Vertical Horizontal Wire Flame Test Apparatus of UL 1581 test for flammability of cable materials.
  • Item NO.:ZLT-HV4
  • Order(MOQ):1
  • Payment:T/T
  • Product Origin:China
  • Shipping Port:Guangzhou
  • Lead Time:30 days

UL 1581 Testing for Flammability of Cable Materials

Vertical Horizontal Wire Flame Test Apparatus of UL 1581 test for flammability of cable materials.

Product details:Model ZLT-HV4

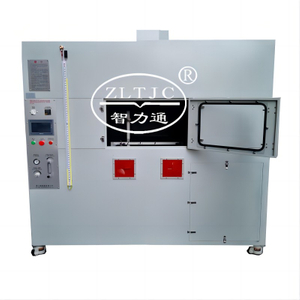

The ZLT Vertical/Horizontal Flame Chamber Test Apparatus is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. the device complies with UL1581-2001(1060 FT1,1061,1080VW-1,1090,1100FT2) standards-related requirements designed. Applicable to the single wire and cable, and soft-line horizontal (FT1), vertical (VW1) combustion test. Burning time and burning the number of adjustable, can be automatic / manual, vertical / horizontal switching, gas pressure, flow adjustable and equipped with flame temperature recognition device.

SPECIFICATIONS:

Flame standard ANSI/ASTM D52077&UL1581
Burner Tube ANSI/ASTM D 5025
Burning Angle

0°,20°

Thermocouple

Type K (Ni/Cr – Ni/Al),200°1050°

Thermocouple Size O/D

Φ0.5mm,type K

Temperature Resolution

1oC

Standard Copper Block

weight10 ± 0 .05 g before drilling. Cu-ETP

Time for Temperature to Increase

1、225W/50mm(16.5mm)/84±2S

A:405 ±10mL/min& 45±5 mm water

2、500W/125mm(40mm)/54±2S

A:965 ±30mL/min&125±25 mm water

B:385 ±15mL/min&552±100 mm water

C:300 ±10mL/ min&600±125 mm water



Gas Supply(do not provide)

methane,min.98% purity

Input Power 220V 50Hz 3A or 115V 60Hz optional
Volume of Chamber

>4m3, black interior

Outer Dimensions

W*D*H=2000mm*1000mm*2000mm

Conform to Standard UL1581,1.1060.Vertical Flame and FTi Tests

2. 1061.Cable Flame Test

3. 1080.VW-1(Vertical Specimen)Flame Test

4. 1090.Horizontal-Speciment Appliance-Wire Flame Test.

5. 1100.Horizontal-Speciment/FT2 Flame Test

Includes: Flame height gauge and 100% absorbent cotton.
